TNY255 Datasheet - Power Integrations Inc.

TNY255 Low Power Off-line Switcher

The TinySwitch family uses a breakthrough design to provide the lowest cost, high efficiency, off-line switcher solution in the 0 to 10 W range. These devices integrate a 700 V power MOSFET, oscillator, high-voltage switched current source, current limit and thermal shutdown circuitry. They start-.
TNY253/254/255 TinySwitchâ„¢ Family Energy Efficient, Low Power Off-line Switchers Product Highlights Lowest Cost, Low Power Switcher Solution Lower cost than RCC, discrete PWM and other integrat- ed/hybrid solutions Cost effective replacement for bulky linear adapters Lowest component count Simple ON/OFF control no loop compensation devices No bias winding simpler, lower cost transformer Allows simple RC type EMI fil.

TNY255 Datasheet (1.45 MB)

Preview of TNY255 PDF

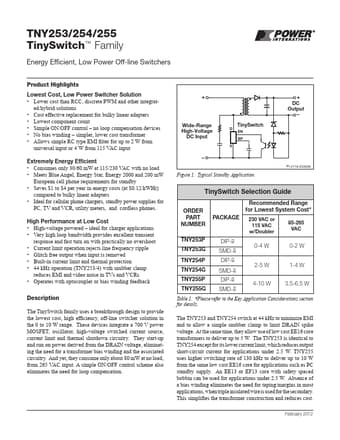

TNY255 Datasheet Preview Page 2 TNY255 Datasheet Preview Page 3

Datasheet Details

Part number:

TNY255

Manufacturer:

Power Integrations Inc.

File Size:

1.45 MB

Description:

Low power off-line switcher.
