TNY255G Low Power Off-line Switcher

The TinySwitch family uses a breakthrough design to provide the lowest cost, high efficiency, off-line switcher solution in the 0 to 10 W range. These devices integrate a 700 V power MOSFET, oscillator, high-voltage switched current source, current limit and thermal shutdown circuitry. They start-.
TNY253/254/255 TinySwitchâ„¢ Family Energy Efficient, Low Power Off-line Switchers Product Highlights Lowest Cost, Low Power Switcher Solution Lower cost than RCC, discrete PWM and other integrat- ed/hybrid solutions Cost effective replacement for bulky linear adapters Lowest component count Simple ON/OFF control no loop compensation devices No bias winding simpler, lower cost transformer Allows simple RC type EMI fil.

TNY-253.pdf

This datasheet PDF includes multiple part numbers: TNY255G, TNY. Please refer to the document for exact specifications by model.

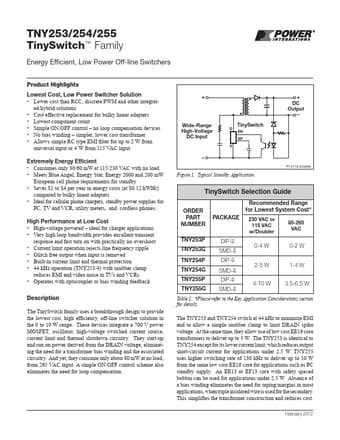

TNY255G Datasheet Preview Page 2 TNY255G Datasheet Preview Page 3
