CAP002DG - Zero Loss Automatic X Capacitor Discharge

CAP002DG Description

™ CAPZero Family Zero1 Loss Automatic X Capacitor Discharge IC Product Highlights * * * * * * .
When AC voltage is applied, CAPZero blocks current flow in the X capacitor safety discharge resistors, reducing the power loss to less than 5 mW, or.

CAP002DG Applications

* All ACDC converters with X capacitors >100 nF
* Appliances requiring EuP Lot 6 compliance
* Adapters requiring ultra low no-load consumption
* All converters requiring very low standby power Figure 1. Typical Application
* Not a Simplified Circuit. C

📥 Download Datasheet

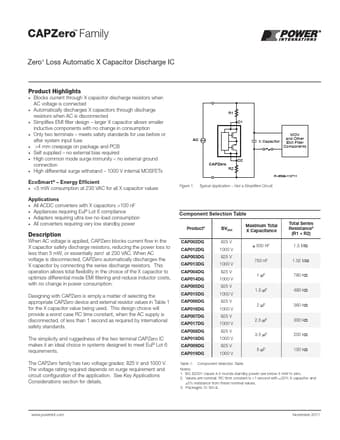

Preview of CAP002DG PDF
