CAP008DG, CAP002DG Datasheet - Power Integrations

CAP008DG Zero Loss Automatic X Capacitor Discharge

When AC voltage is applied, CAPZero blocks current flow in the X capacitor safety discharge resistors, reducing the power loss to less than 5 mW, or essentially zero1 at 230 VAC. When AC voltage is disconnected, CAPZero automatically discharges the X capacitor by connecting the series discharge res.
™ CAPZero Family Zero1 Loss Automatic X Capacitor Discharge IC Product Highlights Blocks current through X capacitor discharge resistors when AC voltage is connected Automatically discharges X capacitors through discharge resistors when AC is disconnected Simplifies EMI filter design larger X capacitor allows smaller inductive components with no change in consumption Only two terminals .

CAP002DG-PowerIntegrations.pdf

This datasheet PDF includes multiple part numbers: CAP008DG, CAP002DG. Please refer to the document for exact specifications by model.

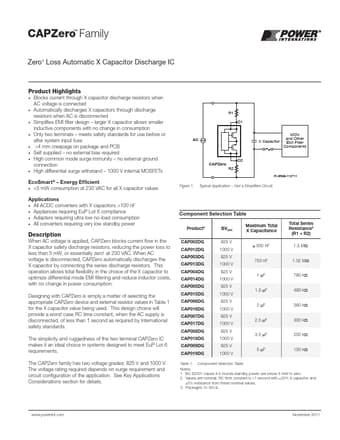

CAP008DG Datasheet Preview Page 2 CAP008DG Datasheet Preview Page 3

Datasheet Details

Part number:

CAP008DG, CAP002DG

Manufacturer:

Power Integrations

File Size:

245.75 KB

Description:

Zero loss automatic x capacitor discharge.

Note:

This datasheet PDF includes multiple part numbers: CAP008DG, CAP002DG.
Please refer to the document for exact specifications by model.
