LNK302, LNK302P Datasheet - Power Integrations

LNK302 Energy-Efficient Off-Line Switcher

LinkSwitch-TN is specifically designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360 mA output current range at equal system cost while offering much higher performance and energy efficiency. LinkSwitch-TN devices integrate a 700 V power MOSFET, o.
LNK302/304-306 LinkSwitch™-TN Family Lowest Component Count, Energy-Efficient Off-Line Switcher IC Product Highlights Cost Effective Linear/Cap Dropper Replacement Lowest cost and component count buck converter solution Fully integrated auto-restart for short-circuit and open loop fault protection saves external component costs LNK302 uses a simplified controller without auto-restart for very low system cost 66 kHz operation with accurate curren.

LNK302P-PowerIntegrations.pdf

This datasheet PDF includes multiple part numbers: LNK302, LNK302P. Please refer to the document for exact specifications by model.

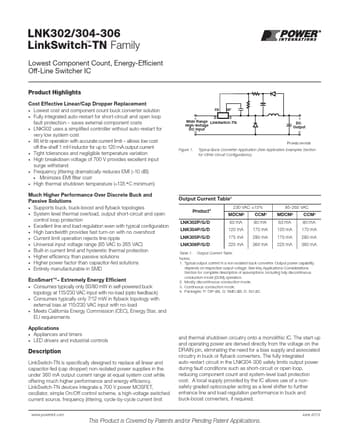

LNK302 Datasheet Preview Page 2 LNK302 Datasheet Preview Page 3

Datasheet Details

Part number:

LNK302, LNK302P

Manufacturer:

Power Integrations

File Size:

341.21 KB

Description:

Energy-efficient off-line switcher.

Note:

This datasheet PDF includes multiple part numbers: LNK302, LNK302P.
Please refer to the document for exact specifications by model.
