SC1117DG

Low Power Off-Line Switcher IC

SC1117DG Features

* Superior to Linear/RCC

* Accurate hysteretic thermal shutdown protection

* automatic recovery improves field reliability

* Universal input range allows worldwide operation

* Simple ON/OFF control, no loop compensation needed

* Very low component count

SC1117DG Datasheet (412.38 KB)

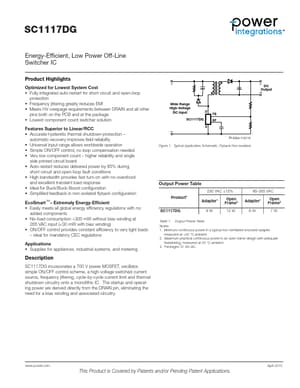

Preview of SC1117DG PDF

Datasheet Details

Part number:

SC1117DG

Manufacturer:

Power Integrations

File Size:

412.38 KB

Description:

Low power off-line switcher ic.
SC1117DG Energy-Efficient, Low Power Off-Line Switcher IC Product Highlights Optimized for Lowest System Cost

* Fully integrated auto-resta.
