SC1100 - Information Appliance On a Chip

Datasheet Summary

Description

The Geode™ SC1100 device is a member of the National Semiconductor® Information Appliance On a Chip (IAOC) family of fully integrated x86 system chips.

Geode GX1 processor module - Combines advanced CPU performance with Intel MMX support, a 64-bit

Features

  • combined with the device’s small form factor and low power consumption, make it ideal as the core for an advanced set-top box, consumer access device, residential gateway, thin client, or embedded system. Block Diagram Geode™ GX1 Memory Controller Fast X-Bus IDE I/F Bridge USB PCI/Sub-ISA Bus I/F PCI Bus CPU Core Core Logic PCI Bus Controller Config. Block Fast-PCI Bus PIT Clock & Reset Logic PIC RTC DMAC ACB1 I/F GPIO Pwr Mgmnt SuperI/O ACB2 I/F UART IR Audio Codec I/F Configur.

📥 Download Datasheet

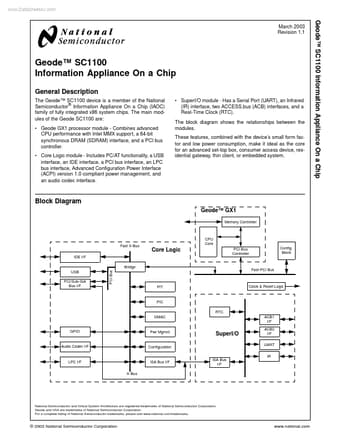

Datasheet preview – SC1100

Datasheet Details

Part number SC1100
Manufacturer National Semiconductor
File Size 2.29 MB
Description Information Appliance On a Chip
Datasheet download datasheet SC1100 Datasheet
Additional preview pages of the SC1100 datasheet.
