SC14422 Complete Baseband Processor for DECT Base Stations

Preliminary document version 1.1. The SC14422 is a 3.0 Volt CMOS IC optimized to handle all the audio, signal and data processing needed within a DECT basestation. An ADPCM transcoder, a very low power CODEC and Analog Frontend are integrated. Direct connections towards analog or ISDN line interface.

SC14422 Features

* s Integrated DECT base band transceiver optimized for GAP base stations according to ETS 300 175-2, 175-3 & 175-8. s 3.0 to 5.5 Volt operating voltage. s Embedded 16 bit CompactRISCTM CR16A Microprocessor with In System Emulation (ISE) mode. _________________________________________________________

SC14422_NationalSemiconductor.pdf

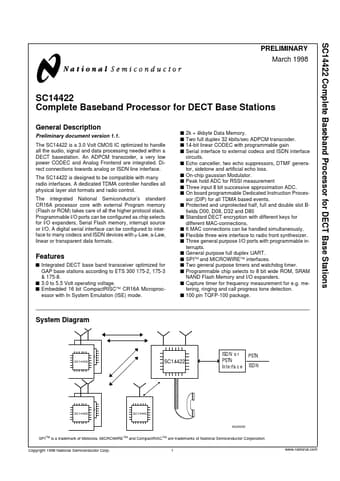

SC14422 Datasheet Preview — Preview of SC14422 PDF

Datasheet Details

Part number:

SC14422

Manufacturer:

National Semiconductor

File Size:

82.69 KB

Description:

Complete baseband processor for dect base stations.
