SC14428 Baseband Processor for FP & PP DECT and WDCT

.The SC14428 is a CMOS IC optimized to handle all the audio, signal and data processing needed within a DECT (1.9 GHz) or 2.4GHz ISM digital band base stations and handsets. A four channel ADPCM transcoder, a very low power 16 bit Codec and Analog Frontend are integrated. Direct connections towards .

SC14428 Features

* Complies with DECT ETS 300 175-2,3 & 8 SWAP-CA V1.3 Rev 1.3 20000616

* 1.8Volt operating voltage with 2.65V (typ) IO pads.

* Two chip low drop voltage regulators

* 16 bit CompactRISCTM CR16C Microprocessor with programmable clock speeds up to 20.736 MHz.

* Four channel DMA cont

SC14428_NationalSemiconductor.pdf

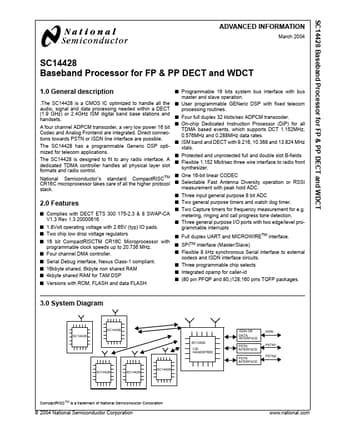

SC14428 Datasheet Preview — Preview of SC14428 PDF

Datasheet Details

Part number:

SC14428

Manufacturer:

National Semiconductor

File Size:

113.90 KB

Description:

Baseband processor for fp & pp dect and wdct.
