SC1401

HIGH PERFORMANCE SYNCHRONOUS BUCK CONTROLLER WITH LDO FOR PORTABLE POWER

SC1401 Features

* >90% Efficiency (SMPS) 6.0V to 30V Input range 1.25V to 5.5V Adjustable output (SMPS) PWM and LDO regulator outputs High output gate drive of 2 Amps (SMPS) Power save mode for light load operation 200kHz/300kHz

SC1401 General Description

The SC1401 is a synchronous buck regulator designed to power the latest generation microprocessors in battery operated systems. The SC1401 may be used to provide both the I/O and core voltages utilizing synchronous rectification for the core supply voltage and an LDO N-Channel MOSFET controller for .

SC1401 Datasheet (202.17 KB)

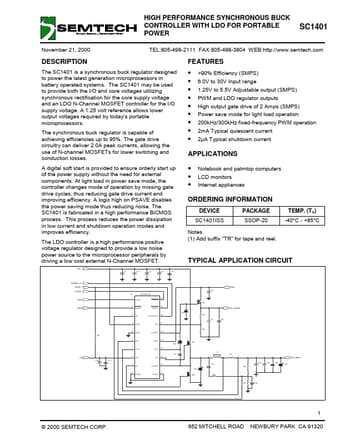

Preview of SC1401 PDF

Datasheet Details

Part number:

SC1401

Manufacturer:

Semtech Corporation

File Size:

202.17 KB

Description:

High performance synchronous buck controller with ldo for portable power.
HIGH PERFORMANCE SYNCHRONOUS BUCK CONTROLLER WITH LDO FOR PORTABLE POWER November 21, 2000 SC1401 TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.s.
