SC1404

Mobile Multi-Output PWM Controller

SC1404 Features

* 6 to 30V input range (operation possible below 6V) 3.3V and 5V dual synchronous outputs Fixed-frequency or PSAVE for maximum efficiency over wide load current range 5V/50mA linear regulator 12V/200mA linear regulator TM Virtual Current Sense for enhanced stability Accurate low-loss current limiting

SC1404 General Description

The SC1404 is a multiple-output power supply controller designed to power battery operated systems. The SC1404 provides synchronous rectified buck converter control for two power supplies. An efficiency of 95% can be achieved. The SC1404 uses Semtech’s proprietary Virtual Current SenseTM technology .

SC1404 Datasheet (527.04 KB)

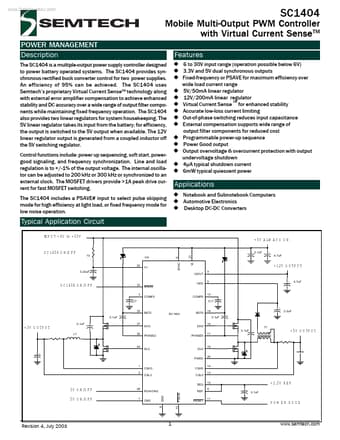

Preview of SC1404 PDF

Datasheet Details

Part number:

SC1404

Manufacturer:

Semtech Corporation

File Size:

527.04 KB

Description:

Mobile multi-output pwm controller.
