24IMO6-03-2 - DC-DC Converter

This page provides the datasheet information for the 24IMO6-03-2, a member of the 24IMO6-03-2_Power DC-DC Converter family.

📥 Download Datasheet

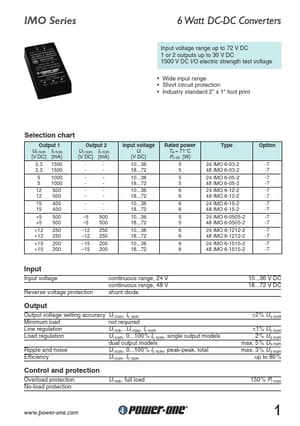

Datasheet preview – 24IMO6-03-2

Datasheet Details

Part number 24IMO6-03-2
Manufacturer Power-One
File Size 107.60 KB
Description DC-DC Converter
Datasheet download datasheet 24IMO6-03-2 Datasheet
Additional preview pages of the 24IMO6-03-2 datasheet.

📁 Similar Datasheet

Other Datasheets by Power-One

Full PDF Text Transcription

Click to expand full text
IMO Series 6 Watt DC-DC Converters Input voltage range up to 72 V DC 1 or 2 outputs up to 30 V DC 1500 V DC I/O electric strength test voltage • Wide input range • Short circuit protection • Industry standard 2" x 1" foot print Selection chart Output 1 Uo nom Io nom [V DC] [mA] 3.3 1500 3.3 1500 5 1000 5 1000 12 500 12 500 15 400 15 400 +5 500 +5 500 +12 250 +12 250 +15 200 +15 200 Output 2 Uo nom Io nom [V DC] [mA] –5 500 –5 500 –12 250 –12 250 –15 200 –15 200 Input voltage Ui [V DC] 10...36 18...72 10...36 18...72 10...36 18...72 10...36 18...72 10...36 18...72 10...36 18...72 10...36 18...
