24IMO6-0505-2, 24IMO6-0505-2_Power Datasheet - Power-One

24IMO6-0505-2 DC-DC Converter

IMO Series 6 Watt DC-DC Converters Input voltage range up to 72 V DC 1 or 2 outputs up to 30 V DC 1500 V DC I/O electric strength test voltage Wide input range Short circuit protection Industry standard 2" x 1" foot print Selection chart Output 1 Uo nom Io nom [V DC] [mA] 3.3 1500 3.3 1500 5 1000 5 1000 12 500 12 500 15 400 15 400 +5 500 +5 500 +12 250 +12 250 +15 200 +15 200 Output 2 Uo nom Io nom [V DC] [mA] 5 500 5 500 12 250 .

24IMO6-0505-2_Power-One.pdf

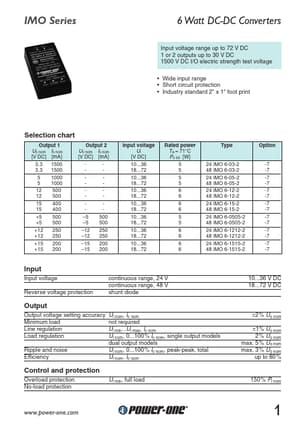

24IMO6-0505-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: 24IMO6-0505-2, 24IMO6-0505-2_Power. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

24IMO6-0505-2, 24IMO6-0505-2_Power

Manufacturer:

Power-One

File Size:

107.60 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: 24IMO6-0505-2, 24IMO6-0505-2_Power.
Please refer to the document for exact specifications by model.
