DSN17N12S5

SINGLE OUTPUT

DSN17N12S5 Features

* Up to 17 Watts Output Power

* Single In Line Package

* Power Density up to 25 Watts per Cubic Inch

* Efficiencies to 88% (Lower for 3.3V Output)

* High Efficiency Step Down Regulator

* Remote ON/OFF FRONT VIEW 2.00 (50.80) RIGHT VIEW 0.50 (12.70)

DSN17N12S5 General Description

With power densities up to 25 watts per cubic inch (1.53 watts per cm3), the DSN17 Series delivers 3.5 amperes of current at either 5 or 3.3 volts. Designed for digital and microprocessor applications, the non-isolated flat package requires only 1 square inch (6.45 cm2) of PCB area. Remote ON/OFF gi.

DSN17N12S5 Datasheet (691.14 KB)

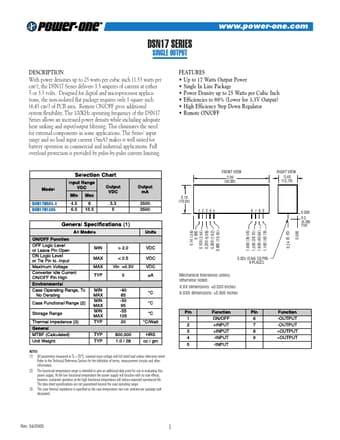

Preview of DSN17N12S5 PDF

Datasheet Details

Part number:

DSN17N12S5

Manufacturer:

Power-One

File Size:

691.14 KB

Description:

Single output.
