DSN17N5S

SINGLE OUTPUT

DSN17N5S Features

* Up to 17 Watts Output Power

* Single In Line Package

* Power Density up to 25 Watts per Cubic Inch

* Efficiencies to 88% (Lower for 3.3V Output)

* High Efficiency Step Down Regulator

* Remote ON/OFF FRONT VIEW 2.00 (50.80) RIGHT VIEW 0.50 (12.70)

DSN17N5S General Description

With power densities up to 25 watts per cubic inch (1.53 watts per cm3), the DSN17 Series delivers 3.5 amperes of current at either 5 or 3.3 volts. Designed for digital and microprocessor applications, the non-isolated flat package requires only 1 square inch (6.45 cm2) of PCB area. Remote ON/OFF gi.

DSN17N5S Datasheet (691.14 KB)

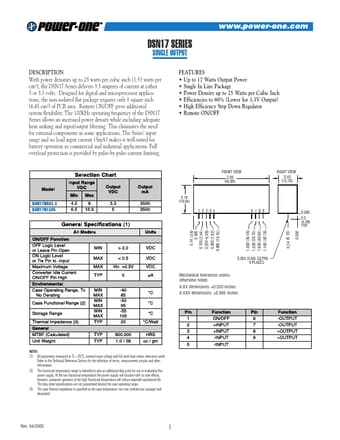

Preview of DSN17N5S PDF

Datasheet Details

Part number:

DSN17N5S

Manufacturer:

Power-One

File Size:

691.14 KB

Description:

Single output.
