EK1301-7R, EK1301-7R_Power Datasheet - Power-One

EK1301-7R 150 Watt DC-DC Converters

K Series 150 Watt DC-DC Converters Input voltage ranges from 8…385 V DC 1or 2 outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA Rugged electrical and mechanical design Fully isolated outputs Operating ambient temperature range 4071 °C with convection cooling Selection chart Output 1 Uo nom Io nom [V DC] [A] 5.1 20 12 10 15 8 24 5 24 5 30 4 48 2.5 12 5 15 4 24 2.5 Output 1 Uo nom Io nom [V DC] [A] 5.1 25 12 12 15 10 24 6 24 6 30 5 48 3 .

EK1301-7R, EK1301-7R_Power Datasheet

This datasheet PDF includes multiple part numbers: EK1301-7R, EK1301-7R_Power. Please refer to the document for exact specifications by model.

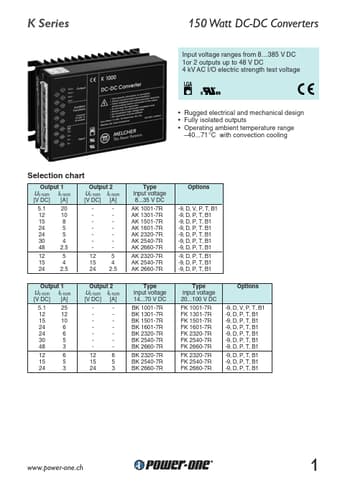

EK1301-7R Datasheet Preview Page 2 EK1301-7R Datasheet Preview Page 3

Datasheet Details

Part number:

EK1301-7R, EK1301-7R_Power

Manufacturer:

Power-One

File Size:

173.58 KB

Description:

150 watt dc-dc converters.

This datasheet PDF includes multiple part numbers: EK1301-7R, EK1301-7R_Power. Please refer to the document for exact specifications by model.
