EK19 Datasheet - Sanken

EK19 Schottky Diode

SANKEN ELECTRIC CO., LTD. 1. Scope The present specifications shall apply to an EK19. 2. Outline Type Silicon Schottky Barrier Diode Structure Resin Molded Applications High Frequency Rectification 3. Flammability UL94V-0(Equivalent) EK19 031224 1/5 61426-01 SANKEN ELECTRIC CO., LTD. 4.Absolute maximum ratings No. Item 1 Transient Peak Reverse Voltage 2 Peak Reverse Voltage 3 Average Forward Current 4 Peak Surge Forward Current 5 I2t Limiting Value 6 Junction Temperature 7 Storage T.

EK19 Datasheet (223.79 KB)

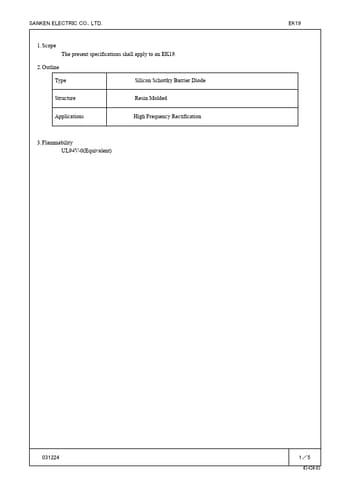

Preview of EK19 PDF
EK19 Datasheet Preview Page 2 EK19 Datasheet Preview Page 3

Datasheet Details

Part number:

EK19

Manufacturer:

Sanken ↗

File Size:

223.79 KB

Description:

Schottky diode.
