HBT060ZGHH

HBT Series . Half-Brick DC/DC Converter 48V Input 60 Watt Triple Output

HBT060ZGHH Features

* 60 Watts maximum total output power Three fully isolated outputs 5V/12V/12V 5V output provides up to 12 Amps (2) 12V outputs each provide up to 2.5 Amps Excellent cross regulation

HBT060ZGHH General Description

The HBT17ZGHH DC-DC Converter operates over an input voltage range of 33Vdc to 75Vdc and provides three isolated output voltages. The 5V output can provide a full 60W (12 Amperes) of output power and each 12V output can provide up to 30W (2.5 Amperes) of output power. The input is fully isolated fro.

HBT060ZGHH Datasheet (115.28 KB)

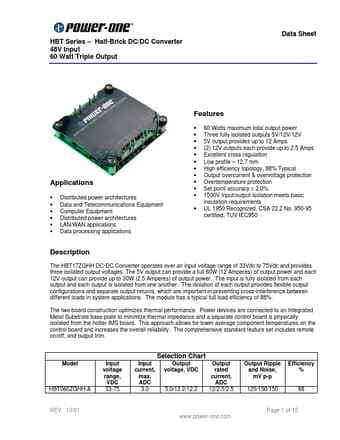

Preview of HBT060ZGHH PDF

Datasheet Details

Part number:

HBT060ZGHH

Manufacturer:

Power-One

File Size:

115.28 KB

Description:

Hbt series . half-brick dc/dc converter 48v input 60 watt triple output.
