LK1301-7R Datasheet - Power-One

LK1301-7R 150 Watt AC-DC Converters

K Series 150 Watt AC-DC Converters Input voltage range from 85264 V AC 1 or 2 isolated outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA Rugged electrical and mechanical design Wide input-frequency range from 47440 Hz Operating ambient temperature range 4071 °C with convection cooling Selection chart Output 1 Output 2 Input voltage Uo nom [V DC] 5.1 12 15 24 24 30 48 12 15 24 Io nom [A] 25 12 10 6 6 5 3 6 5 3 Uo nom [V DC] 12 15 24 .

LK1301-7R Datasheet (95.63 KB)

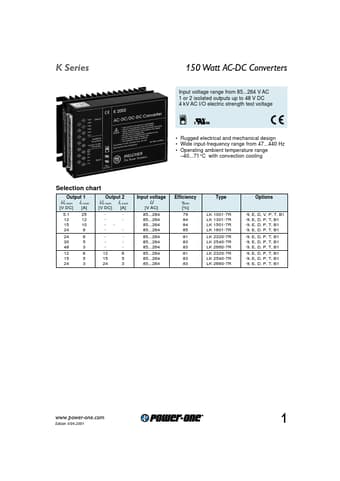

Preview of LK1301-7R PDF

Datasheet Details

Part number:

LK1301-7R

Manufacturer:

Power-One

File Size:

95.63 KB

Description:

150 watt ac-dc converters.
