LK115

Very low drop voltage regulators

LK115 Features

* Very low-dropout voltage (0.2 V typ.)

* Very low quiescent current (typ. 0.01 µA in OFF mode, 280 µA in ON mode)

* Output current up to 100 mA Both active high and active low shutdown logic control are available (pin 2 and 3). This means that when the device is used as a l

LK115 General Description

The LK115 is a series of very low drop voltage regulators, available in SO-8 package. SO-8 The very low drop voltage (0.2 V) and very low quiescent current (0.01 µA in OFF mode, 280 µA in ON mode) make it particularly suitable for low noise, low power applications and especially in battery-powere.

LK115 Datasheet (147.95 KB)

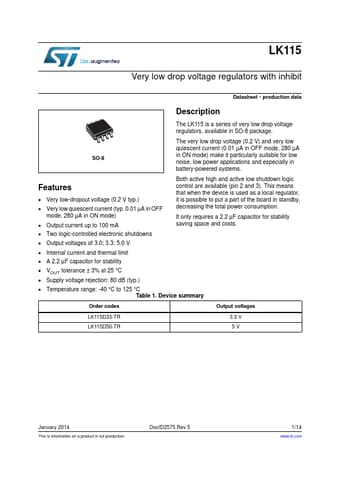

Preview of LK115 PDF

Datasheet Details

Part number:

LK115

Manufacturer:

STMicroelectronics ↗

File Size:

147.95 KB

Description:

Very low drop voltage regulators.
