LS1301-7R, LS1301-7R_Power Datasheet - Power-One

LS1301-7R 100 Watt AC-DC Converters

S Series 100 Watt AC-DC Converters Input voltage range from 85…264 V AC 1 or 2 isolated outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA Rugged electrical and mechanical design Wide input frequency range from 47440 Hz Operating ambient temperature range 4071 °C with convection cooling Selection chart Output 1 Output 2 Input voltage Type Options Uo nom [V DC] 5.1 12 15 24 24 30 48 12 15 24 Io nom [A] 16 8 6.5 4.2 4 3.2 2 4 3.2 2 Uo .

LS1301-7R_Power-One.pdf

This datasheet PDF includes multiple part numbers: LS1301-7R, LS1301-7R_Power. Please refer to the document for exact specifications by model.

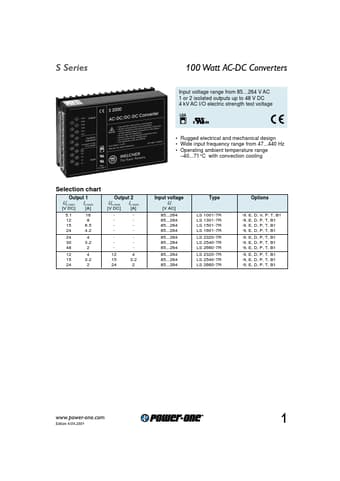

LS1301-7R Datasheet Preview Page 2 LS1301-7R Datasheet Preview Page 3

Datasheet Details

Part number:

LS1301-7R, LS1301-7R_Power

Manufacturer:

Power-One

File Size:

66.99 KB

Description:

100 watt ac-dc converters.

Note:

This datasheet PDF includes multiple part numbers: LS1301-7R, LS1301-7R_Power.
Please refer to the document for exact specifications by model.
