AR912 Datasheet - Power Semiconductors

AR912 RECTIFIER DIODE

POSEICO POSEICO SPA POwer SEmiconductors Italian COrporation POSEICO SPA Via N. Lorenzi 8, 16152 Genova - ITALY Tel. ++ 39 010 6556234 - Fax ++ 39 010 6557519 Sales Office: Tel. ++ 39 010 6556775 - Fax ++ 39 010 6442510 RECTIFIER DIODE AR912 Repetitive voltage up to Mean forward current Surge current 5600 V 645 A 6.3 kA FINAL SPECIFICATION nov 02 - ISSUE : 05 Symbol Characteristic Conditions Tj [°C] Value Unit BLOCKING V V I RRM RSM RRM Repetitive peak reverse voltage Non-repetitive .

AR912_PowerSemiconductors.pdf

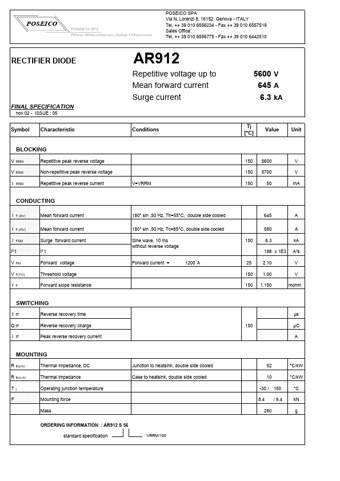

Preview of AR912 PDF
AR912 Datasheet Preview Page 2 AR912 Datasheet Preview Page 3

Datasheet Details

Part number:

AR912

Manufacturer:

Power Semiconductors

File Size:

167.70 KB

Description:

Rectifier diode.
