PT6302, PT6300 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators

Datasheet Details

Part number: PT6302, PT6300
Manufacturer: Power Trend
File Size: 176.55 KB
Datasheet: PT6300-PowerTrend.pdf
Description: 3Amp Adjustable Positive Step-down Integrated Switching Regulators
Note: This datasheet PDF includes multiple part numbers: PT6302, PT6300.
Please refer to the document for exact specifications by model.

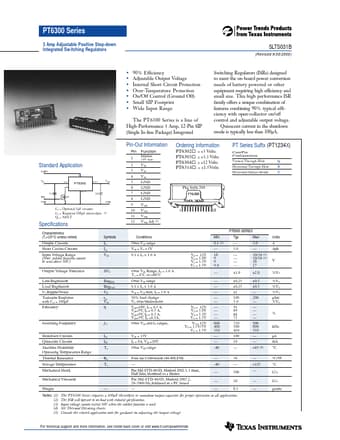

combining 90% typical efficiency with open-collector on/off control and adjustable output voltage. Quiescent current in the shutdown mode is typically less than 100µA. Standard Application VOADJ 12 VIN 2,3,4 PT6300 1 9,10,11 VOUT C1 INH COM 5,6,7,8 + C2 Q1 COM C1 = Optional 1µF ceramic C2 = Required 100µF electrolytic (1) Q1 = NFET Specifications Pin-Out Information Pin Function 1 Inhibit (30V max) 2 Vin 3 Vin 4 Vin 5 GND 6 GND 7 GND 8 GND 9 Vout 10 Vout 11 Vout 12 Vout Adj.
