PT6426 Datasheet - Power Trend

PT6426 3Amp 5V Input Adjustable Integrated Switching Regulator

PT6420 Series 3 Amp 5V Input Adjustable Integrated Switching Regulator SLTS033A (Revised 6/30/2000) Adjustable Output Voltage 85% Efficiency Small SIP Footprint Input Voltage Range: 4.5V to 5.5V Remote Sense Capability The PT6420 series from Power Trends is a high performance +5V to +3.3V, 3Amp family of 14-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs). Only two external capacitors are required for proper operation. P.

PT6426 Datasheet (518.46 KB)

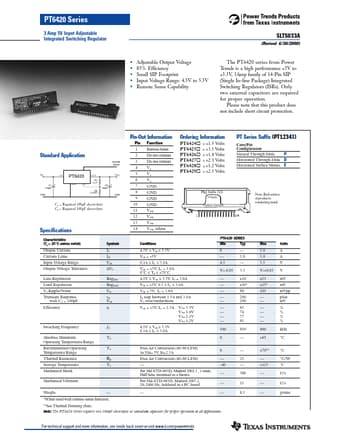

Preview of PT6426 PDF
PT6426 Datasheet Preview Page 2 PT6426 Datasheet Preview Page 3

Datasheet Details

Part number:

PT6426

Manufacturer:

Power Trend

File Size:

518.46 KB

Description:

3amp 5v input adjustable integrated switching regulator.
