PT6428, PT6420 Datasheet - Power Trend

PT6428 3Amp 5V Input Adjustable Integrated Switching Regulator

PT6420 Series 3 Amp 5V Input Adjustable Integrated Switching Regulator SLTS033A (Revised 6/30/2000) Adjustable Output Voltage 85% Efficiency Small SIP Footprint Input Voltage Range: 4.5V to 5.5V Remote Sense Capability The PT6420 series from Power Trends is a high performance +5V to +3.3V, 3Amp family of 14-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs). Only two external capacitors are required for proper operation. P.

PT6420-PowerTrend.pdf

This datasheet PDF includes multiple part numbers: PT6428, PT6420. Please refer to the document for exact specifications by model.

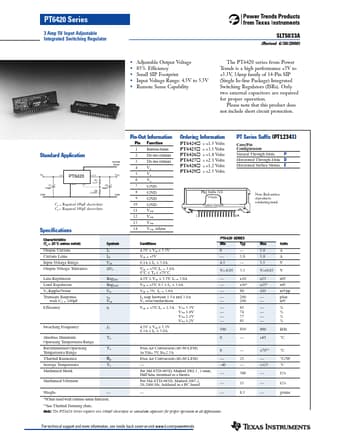

PT6428 Datasheet Preview Page 2 PT6428 Datasheet Preview Page 3

Datasheet Details

Part number:

PT6428, PT6420

Manufacturer:

Power Trend

File Size:

518.46 KB

Description:

3amp 5v input adjustable integrated switching regulator.

Note:

This datasheet PDF includes multiple part numbers: PT6428, PT6420.
Please refer to the document for exact specifications by model.
