CC2403020N - Super Fast Recovery Dual Diode Modules 20 Amperes/300-600 Volts

Product Overview

Powerex Power Semiconductors

Datasheet Details

Part number	CC2403020N
Manufacturer	Powerex Power Semiconductors
File Size	64.03 KB
Description	Super Fast Recovery Dual Diode Modules 20 Amperes/300-600 Volts
Datasheet	CC2403020N Datasheet

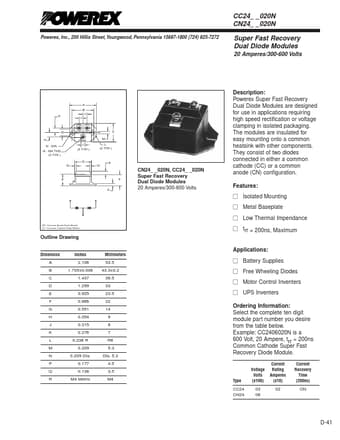

Additional preview pages of the CC2403020N datasheet.

Product details

Description

Powerex Super Fast Recovery Dual Diode Modules are designed for use in applications requiring high speed rectification or voltage clamping in isolated packaging.

Features

Ⅺ Isolated Mounting Ⅺ Metal Baseplate Ⅺ Low Thermal Impendance CN.
Common Anode Diode Module CC.
Common Cathode Diode Module Ⅺ trr = 200ns, Maximum Outline Drawing Dimension A B C D E F G H J K L M N P Q R Inches 2.106 1.705±0.008 1.437 1.299 0.925 0.866 0.551 0.354 0.315 0.276 0.236 R 0.209 0.209 Dia. 0.177 0.138 M4 Metric Millimeters 53.5 43.3±0.2 36.5 33 23.5 22 14 9 8 7 R6 5.3 Dia. 5.3 4.5 3.5 M4.
