PM400DVA060 Datasheet - Powerex Power Semiconductors

PM400DVA060 Single Phase IGBT Inverter

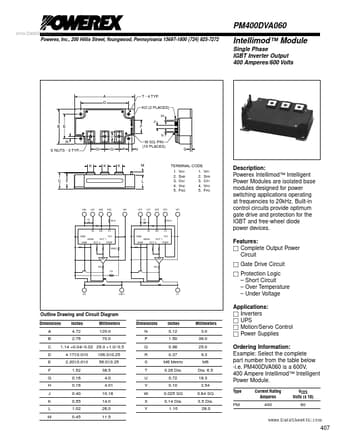

PM400DVA060 www.DataSheet4U.com Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Module Single Phase IGBT Inverter Output 400 Amperes/600 Volts A D T - 4 TYP. XØ (2 PLACES) H J B E U R S NUTS - 3 TYP. Q Q P N F V W SQ. PIN (10 PLACES) G K K K M C Y L TERMINAL CODE 1. VN1 1. VP1 2. SNR 2. SPR 3. CN1 3. CP1 4. VNC 4. VPC 5. FNO 5. FPO VNC CN1 SNR FNO VN1 VPC CP1 SPR FPO VP1 CI RFO CI RFO IN GND SINK SR FO VCC GND SINK I.

PM400DVA060 Features

* Complete Output Power Circuit

* Gate Drive Circuit

* Protection Logic

* Short Circuit

* Over Temperature

* Under Voltage Applications:

* Inverters

* UPS

* Motion/Servo Control

* Power Supplies Ordering Information: Ex

PM400DVA060_PowerexPowerSemiconductors.pdf

PM400DVA060 Datasheet Preview — Preview of PM400DVA060 PDF

Datasheet Details

Part number:

PM400DVA060

Manufacturer:

Powerex Power Semiconductors

File Size:

139.62 KB

Description:

Single phase igbt inverter.
