QIC1208001 - Dual AC Switch IGBT

Powerex Power Semiconductors

Datasheet Details

Part number	QIC1208001
Manufacturer	Powerex Power Semiconductors
File Size	33.90 KB
Description	Dual AC Switch IGBT
Datasheet	QIC1208001_PowerexPowerSemiconductors.pdf

Powerex Dual AC Switch IGBT Module designed specially for customer applications.

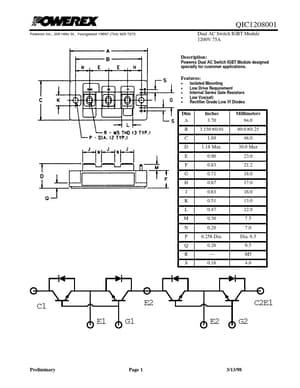

Isolated Mounting Low Drive Requirement Internal Series Gate Resistors Low Vce(sat) Rectifier Grade Low Vf Diodes Dim A B C D E F G H J K L M N P Q R S Inches 3.70 3.150 K0.01 1.89 1.18 Max. 0.90 0.83 0.71 0.67 0.63 0.51 0.47 0.30 0.28 0.256 Dia. 0.26 --0.16 Millimeters 94.0 80.0 K0.25 48.0 30.0 Max 23.0 21.2 18.0 17.0 16.0 13.0 12.0 7.5 7.0 Dia. 6.5 6.5 M5 4.0 C1 E1 G1 E2 E2 G2 C2E1 Preliminary Page 1 3/13/98 QIC1208001 Powerex Inc. ,.
