PP400T060 Datasheet - Powerex Power

POW-R-PAK 400A / 600V 3 phase IGBT Assembly

PP400T060 Features

* state-of-the-art Powerex F-series trench gate IGBTs with low conduction and switching losses for high efficiency operation. The TM POW-R-PAK includes a low inductance laminated bus structure, optically isolated gate drive interfaces, isolated gate drive power supplies, and a DC-link capacitor bank.

PP400T060 General Description

The Powerex POW-R-PAK is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications. The power assembly is mounted on a forced aircooled heatsink and feat.

PP400T060 Datasheet (362.53 KB)

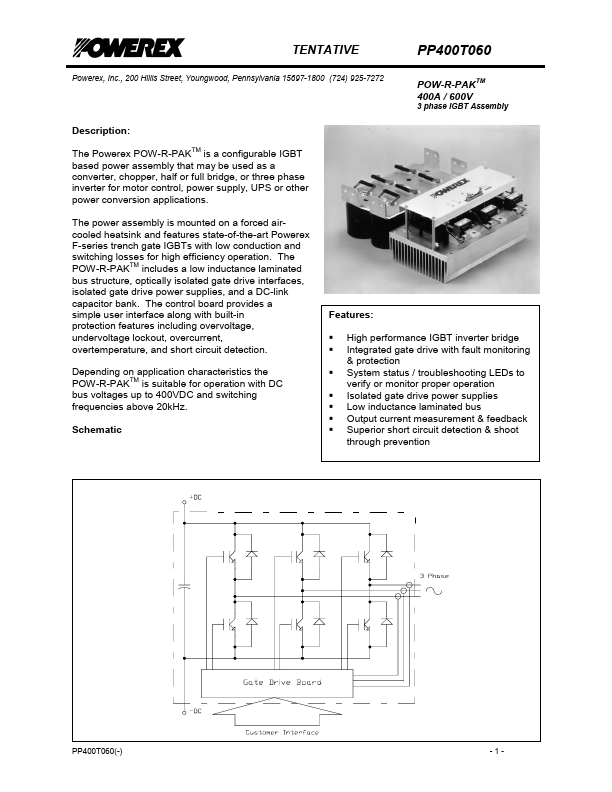

PP400T060 Datasheet Preview — Preview of PP400T060 PDF

Datasheet Details

Part number:

PP400T060

Manufacturer:

Powerex Power

File Size:

362.53 KB

Description:

Pow-r-pak 400a / 600v 3 phase igbt assembly.
TENTATIVE Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 PP400T060 POW-R-PAK 400A / 600V TM 3 phase IGBT Assemb.
