PP600D060

POW-R-PAK 600A / 600V Half Bridge IGBT Assembly

PP600D060 Features

* state-of-the-art Powerex F-series trench gate IGBTs with low conduction and switching losses for high efficiency operation. The TM POW-R-PAK includes a low inductance laminated bus structure, optically isolated gate drive interfaces, isolated gate drive power supplies, and a DC-link capacitor bank.

PP600D060 General Description

The Powerex POW-R-PAK is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications. The power assembly is mounted on a forced aircooled heatsink and feat.

PP600D060 Datasheet (362.84 KB)

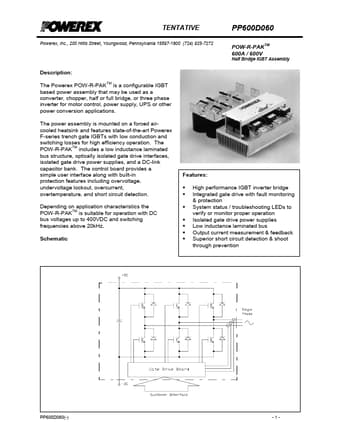

Preview of PP600D060 PDF

Datasheet Details

Part number:

PP600D060

Manufacturer:

Powerex Power

File Size:

362.84 KB

Description:

Pow-r-pak 600a / 600v half bridge igbt assembly.
TENTATIVE Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 PP600D060 POW-R-PAK 600A / 600V TM Half Bridge IGBT As.
