PP600D120 - POW-R-PAK 600A / 1200V Half Bridge IGBT Assembly

Product Overview

Powerex Power

Datasheet Details

Part number	PP600D120
Manufacturer	Powerex Power
File Size	366.01 KB
Description	POW-R-PAK 600A / 1200V Half Bridge IGBT Assembly
Datasheet	PP600D120 Datasheet

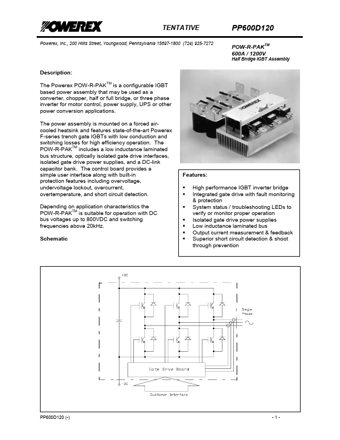

Additional preview pages of the PP600D120 datasheet.

Product details

Description

The Powerex POW-R-PAK is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.

Features

state-of-the-art Powerex F-series trench gate IGBTs with low conduction and switching losses for high efficiency operation. The TM POW-R-PAK includes a low inductance laminated bus structure, optically isolated gate drive interfaces, isolated gate drive power supplies, and a DC-link capacitor bank. The control board provides a simple user interface along with built-in protection features including overvoltage, undervoltage lockout, overcurrent, overtemperature, and short circuit detection. Depen.
