PC1601-F - LCD

Powertip Technology

Datasheet Details

Part number	PC1601-F
Manufacturer	Powertip Technology
File Size	96.75 KB
Description	LCD
Datasheet	PC1601-F Datasheet
Additional preview pages of the PC1601-F datasheet.

📁 Similar Datasheet

PC1601-A - Display Module (POWERTIP)
pc1601-E - Display Module (POWERTIP)
PC1601-H - Display Module (POWERTIP)
pc1601-k - Display Module (POWERTIP)
PC1601-L - Display Module (POWERTIP)
PC1601AR-AEA-A-SD - LCD Module (POWERTIP)
PC1601ARS-ESO-A-SO - LCD Module (POWERTIP)
PC1601ARS-LWA-D-Q - LCD Module (POWERTIP)
PC1601ARU-ASO-A - LCD Module (POWERTIP)
PC1601ARU-LWB-A-Q - LCD Module (POWERTIP)

Other Datasheets by Powertip Technology

PC1601-G - LCD
PC1602-D - Display OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-F - Display OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-H - OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-J - OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-K-Y4 - OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-L - OUTLINE DIMENSION & BLOCK DIAGRAM
PC1602-Q - OUTLINE DIMENSION & BLOCK DIAGRAM

Full PDF Text Transcription

Click to expand full text

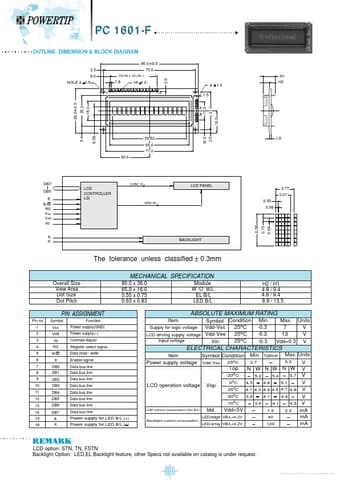

PC 1601-F OUTLINE DIMENSION & BLOCK DIAGRAM 80.0 0.5 2.5 8.0 HOLE 4- 2.5 1 P2.54 x 15=38.1 75.0 1.8 2.0 H1 4- 1.0 16 16- 1.0 H2 1.5 15.0 K A 31.0 18.0 36.0 0.5 25.2 5.4 16.0 6.56 10.5 2.5 59.62 65.0 71.2 40.0 1.6 DB7 DB0 E R/W RS Vss Vdd Vo A K LCD CONTROLLER LSI COM 16 LCD PANEL 3.77 3.07 0.55 0.08 SEG 40 6.56 BACKLIGHT The tolerance unless classified 0.3mm MECHANICAL SPECIFICATION Overall Size View Area Dot Size Dot Pitch 80.0 x 36.0 65.0 x 16.0 0.55 x 0.75 0.63 x 0.83 Module W /O B/L EL B/L LED B/L H2 / H1 4.8 / 9.4 4.8 / 9.4 8.9 / 13.5 PIN ASSIGNMENT Pin no.
