PC-1602H Datasheet - Powertip

PC-1602H OUTLINE DIMENSION & BLOCK DIAGRAM

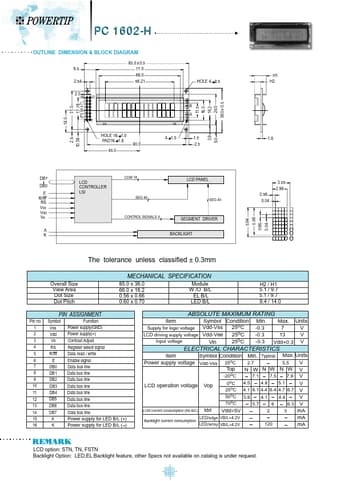

PC 1602-H OUTLINE DIMENSION & BLOCK DIAGRAM 85.0 0.5 9.5 2.54 2.0 31.0 71.0 66.0 56.21 HOLE 4- 2.5 H1 H2 16 (P2.54 x 7) 15 A 2 1 18.0 2.5 10.38 80.0 45.0 2.5 DB7 DB0 E R/W RS Vss Vdd Vo A K LCD CONTROLLER LSI COM 16 LCD PANEL 6.0 HOLE 16- 1.0 PAD16- 1.8 16.0 4- 1.0 1.5 3.9 16.2 11.5 25.0 K 36.0 0.5 17.78 1.6 3.55 2.96 0.56 SEG 40 SEG 40 0.04 5.94 SEGMENT DRIVER 5.56 CONTROL SIGNALS 4 0.66 BACKLIGHT The tolerance unless classified 0.3mm MECHANICAL SPECIFICATION.

PC-1602H Datasheet (178.05 KB)

PC-1602H Datasheet Preview — Preview of PC-1602H PDF

Datasheet Details

Part number:

PC-1602H

Manufacturer:

Powertip

File Size:

178.05 KB

Description:

Outline dimension & block diagram.
