PC-10-1000, PC-10-90 Datasheet - Signal Transformer

PC-10-1000 Printed Circuit Mount Power Transformers

Printed Circuit Mount Power Transformers Miniature Low Power Transformers Signal’s PC low power transformers are designed to operate between 50 Hz and 500 Hz without any degradation in output voltage.   General Specifications Power - 1.0 VA to 24 VA Dielectric Strength - 1500 Vrms Hipot Primaries - Single or dual primaries, 115 V or 115/230 V, 50-500 Hz Dual Secondaries - Series or parallel Insulation System - Class B, 130º C, UL 1446 E66312.

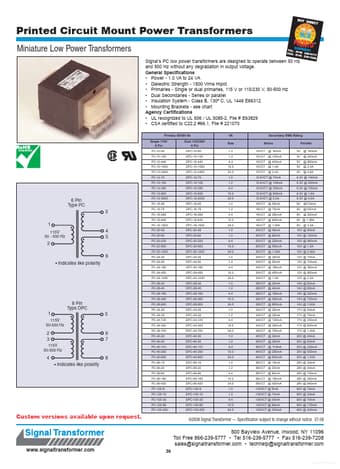

PC-10-90-SignalTransformer.pdf

PC-10-1000 Datasheet Preview — This datasheet PDF includes multiple part numbers: PC-10-1000, PC-10-90. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PC-10-1000, PC-10-90

Manufacturer:

Signal Transformer

File Size:

286.81 KB

Description:

Printed circuit mount power transformers.

Note:

This datasheet PDF includes multiple part numbers: PC-10-1000, PC-10-90.
Please refer to the document for exact specifications by model.
