PC-17L1 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Datasheet Summary

Features

  • Small Package Size.
  • Collector-Emitter Voltage : Min.35V.
  • Current Transfer Ratio : Min.50% (at IF=5mA, VCE=5V).
  • Electrical Isolation Voltage : AC5000Vrms.
  • Creepage/Clearance between Input and Output : Min. 7.0mm.
  • UL Recognized File No. E107486.

📥 Download Datasheet

Datasheet preview – PC-17L1

Datasheet Details

Part number PC-17L1
Manufacturer KODENSHI KOREA CORP
File Size 288.70 KB
Description Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
Datasheet download datasheet PC-17L1 Datasheet
Additional preview pages of the PC-17L1 datasheet.

📁 Similar Datasheet

  • PC-10-1000 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-10-120 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-10-2400 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-10-440 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-10-90 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-12-100 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-12-2000 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-12-350 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-12-70 - Printed Circuit Mount Power Transformers (Signal Transformer)
  • PC-12-800 - Printed Circuit Mount Power Transformers (Signal Transformer)
Other Datasheets by KODENSHI KOREA CORP
  • PC-17L2 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17L4 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17K1 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17K1C - Photocoupler(Photocoupler consists of a Gallium Arsenide Infrared Emitting)
  • PC-17K2 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17K4 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17T1 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
  • PC-17T2 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Full PDF Text Transcription

Click to expand full text

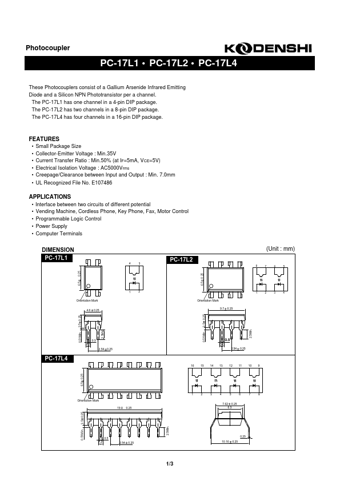

Photocoupler PC-17L1 • PC-17L2 • PC-17L4 These Photocouplers consist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Phototransistor per a channel. The PC-17L1 has one channel in a 4-pin DIP package. The PC-17L2 has two channels in a 8-pin DIP package. The PC-17L4 has four channels in a 16-pin DIP package. FEATURES • Small Package Size • Collector-Emitter Voltage : Min.35V • Current Transfer Ratio : Min.50% (at IF=5mA, VCE=5V) • Electrical Isolation Voltage : AC5000Vrms • Creepage/Clearance between Input and Output : Min. 7.0mm • UL Recognized File No.
