PC-17K1C - Photocoupler(Photocoupler consists of a Gallium Arsenide Infrared Emitting)

PC-17K1C Description

Photocoupler PC-17K1C The Photocoupler consists of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Phototransistor per a channel.The PC.

PC-17K1C Features

* Small Package Size
* Collector-Emitter Voltage : Min.35V
* Current Transfer Ratio : Min.50% (at IF=5mA, VCE=5V)
* Electrical Isolation Voltage : AC5000Vrms
* Creepage/Clearance between Input and Output : Min. 7.0mm
* UL Recognized File No. E107486 6

PC-17K1C Applications

* Interface between two circuits of different potential
* Vending Machine, Cordless Phone, Key Phone, Fax, Motor Control
* Programmable Logic Control
* Power Supply
* Computer Terminals 0.4 1.2 2.54 0.25 Max 15 MAXIMUM RATINGS Parameter Forward Current Inp

📥 Download Datasheet

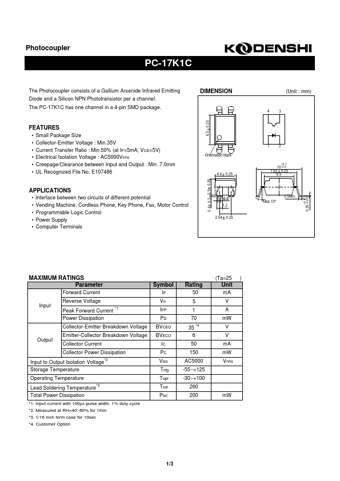

Preview of PC-17K1C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PC-17K1C
Manufacturer
KODENSHI KOREA CORP
File Size
218.66 KB
Datasheet
PC-17K1C_KodenshiCorp.pdf
Description
Photocoupler(Photocoupler consists of a Gallium Arsenide Infrared Emitting)
