PC-17K1 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Datasheet Summary

Features

  • Small Package Size.
  • Collector-Emitter Voltage : Min.35V.
  • Current Transfer Ratio : Min.50% (at I F=5mA, VCE=5V).
  • Electrical Isolation Voltage : AC5000Vrms.
  • Creepage/Clearance between Input and Output : Min. 7.0mm.
  • UL Recognized File No. E107486.

📥 Download Datasheet

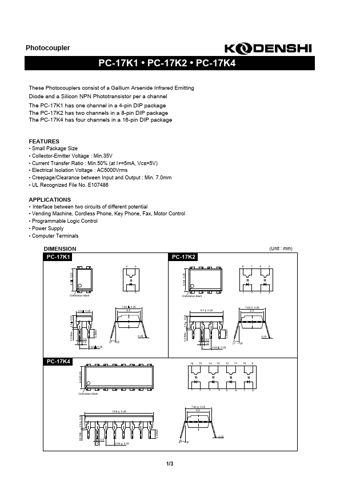

Datasheet preview – PC-17K1

Datasheet Details

Part number PC-17K1
Manufacturer KODENSHI KOREA CORP
File Size 499.81 KB
Description Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
Datasheet download datasheet PC-17K1 Datasheet
