PL83251

2.4A Monolithic Step-Down Switching Regulator

PL83251 Features

* 2.4A continuous output current capability

* 6.5V to 36V wide operating input range with 33V input Over Voltage Protection

* Integrated 36V, 108mΩ high side and 36V, 102mΩ low side power MOSFET switches

* Up to 95% efficiency

* Internally fixed 3A constant current control

PL83251 General Description

The PL83251 is a monolithic 36V, 2.4A step-down switching regulator with CC/CV control loop. PL83251 integrates a high efficiency synchronous step-down switching regulator, which includes a 36V 108mΩ high side and a 36V, 102mΩ low side MOSFETs to provide 2.4A continuous load current over a 6.5V to 3.

PL83251 Datasheet (1.13 MB)

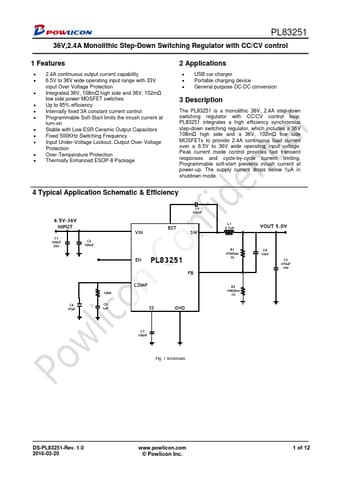

PL83251 Datasheet Preview — Preview of PL83251 PDF

Datasheet Details

Part number:

PL83251

Manufacturer:

Powlicon

File Size:

1.13 MB

Description:

2.4a monolithic step-down switching regulator.
