PL9405

High Efficiency 4-Switch Bidirectional Buck-Boost Converter

PL9405 Features

* Bidirectional single Inductor Buck-Boost Controller for Step-Up/Step-Down DC/DC Conversion and battery charge management

* Bidirectional buck-boost operation to support battery charging and discharging using OTG signal

* Dynamical programming of input current, Output current and Output

PL9405 General Description

PL9405 is a synchronous 4-switch bidirectional Buck-Boost converter capable of regulating the output voltage at above or below the input voltage. PL9405 operates over a wide input voltage range of 3.6 V to 32 V (36 V maximum) to support a variety of applications. Integrated two 9mΩ power MOSFETs. PL.

PL9405 Datasheet (1.70 MB)

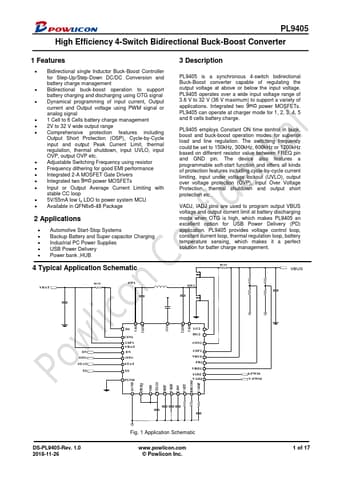

Preview of PL9405 PDF

Datasheet Details

Part number:

PL9405

Manufacturer:

Powlicon

File Size:

1.70 MB

Description:

High efficiency 4-switch bidirectional buck-boost converter.
