PL94055

High Efficiency 4-Switch Buck-Boost Converter

PL94055 Features

* Buck-Boost Controller for Step-Up/Step-Down DC/DC Conversion

* Dynamical programming of Output current and Output voltage using PWM signal or analog signal

* 2V to 32 V wide output range

* Comprehensive protection features including Output Short Protection (OSP), Cycle-by-Cycle inp

PL94055 General Description

PL94055 is a synchronous 4-switch Buck-Boost controller capable of regulating the output voltage at above or below the input voltage. PL94055 operates over a wide input voltage range of 3.6 V to 32 V (36 V maximum) to support a variety of applications. Integrated two 9mΩ power MOSFETs. PL94055 emplo.

PL94055 Datasheet (4.11 MB)

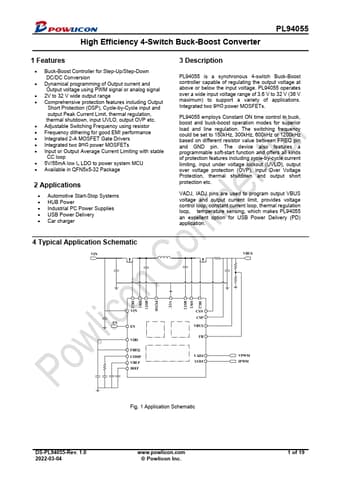

PL94055 Datasheet Preview — Preview of PL94055 PDF

Datasheet Details

Part number:

PL94055

Manufacturer:

Powlicon

File Size:

4.11 MB

Description:

High efficiency 4-switch buck-boost converter.
