PT2380 - 4 Mode Preset Equalizer

Product Overview

Princeton Technology Corp

Part number	PT2380
Manufacturer	Princeton Technology Corp
File Size	263.75 KB
Description	4 Mode Preset Equalizer
Datasheet	PT2380 Datasheet
Additional preview pages of the PT2380 datasheet.

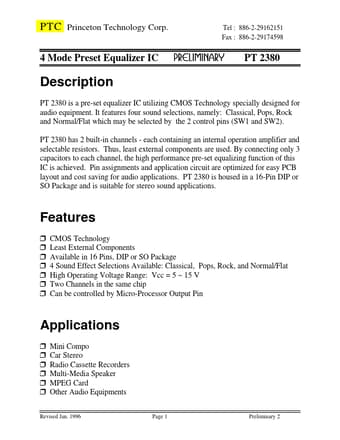

PT 2380 is a pre-set equalizer IC utilizing CMOS Technology specially designed for audio equipment.

four sound selections, namely: Classical, Pops, Rock and Normal/Flat which may be selected by the 2 control pins (SW1 and SW2). PT 2380 has 2 built-in channels - each containing an internal operation amplifier and selectable resistors. Thus, least external components are used. By connecting only 3 capacitors to each channel, the high performance pre-set equalizing function of this IC is achieved. Pin assignments and.
