PT6553

LCD Driver IC

Princeton Technology Corp

PT6553 Features

* Up to 126 Segments Outputs

* Up to 4 General Purpose Output Ports

* Key Input Function (up to 30 Keys)

* 1/3 Duty - 1/2 Bias and 1/3 Duty - 1/3 Bias Drive Techniques

* Sleep Mode and all Segments OFF Function

* Direct Display of Display Data without

PT6553 General Description

PT6553 is an LCD Driver IC providing key scan circuitry which can accept up to a maximum of 30 keys, thereby, reducing printed circuit board wiring. It can drive up to 126 segments and is capable of controlling up to 4 general purpose output ports. The reset circuit provides on-chip voltage detectio.

PT6553 Datasheet (135.49 KB)

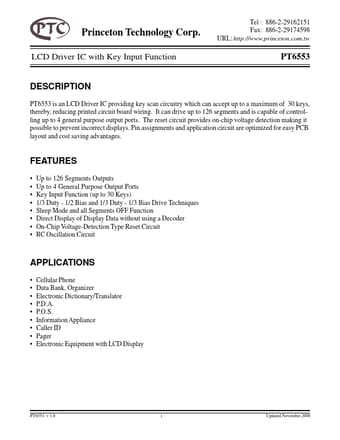

PT6553 Datasheet Preview — Preview of PT6553 PDF

Datasheet Details

Part number:

PT6553

Manufacturer:

Princeton Technology Corp

File Size:

135.49 KB

Description:

Lcd driver ic.
Princeton Technology Corp. LCD Driver IC with Key Input Function Tel : 886-2-29162151 Fax: 886-2-29174598 URL: http://www.princeton.com.tw PT6553 DE.
