PT6523

1/3 Duty General Purpose LCD Driver IC

Princeton Technology Corp

PT6523 Features

* Up to 156 Segments Outputs

* 1/3 Duty - 1/2 Bias and 1/3 Duty - 1/3 Bias Drive Techniques

* Power Saving Mode and all Segments OFF Function

* Direct Display of Display Data without using a Decoder

* RC Oscillation Circuit

* Power Supply Voltage: 4.5

PT6523 General Description

PT6523 is an LCD Driver IC which can drive up to 156 segments. It can be used for frequency display in microprocessor-controlled radio receiver and in other display applications. PT6523 supports both 1/2 bias, 1/3 duty and 1/3 duty, 1/3 bias. Pin assignments and application circuit are optimized for.

PT6523 Datasheet (733.00 KB)

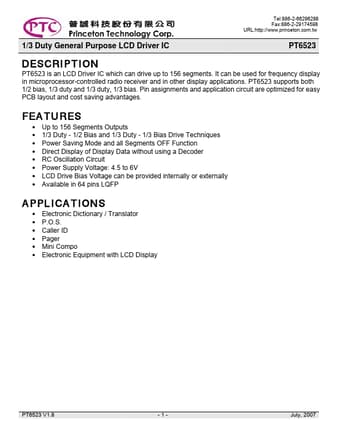

PT6523 Datasheet Preview — Preview of PT6523 PDF

Datasheet Details

Part number:

PT6523

Manufacturer:

Princeton Technology Corp

File Size:

733.00 KB

Description:

1/3 duty general purpose lcd driver ic.
