PT2312E Stereo Audio Processor

PT2312E Description

PT2312E Stereo Audio Processor for Car Audio .
The PT2312E is an audio processor designed for versatile application, includes 4 stereo input selector with adjustable gain, master volume control wit.

PT2312E Features

* 4 stereo inputs with gain selection, range from 0dB to +11.25dB in 3.75dB/step
* Master volume from 0 dB to -78.75dB in 1.25dB/step
* Speaker attenuator for balance and fader, range from 0dB to -38.75dB in 1.25dB/step
* Each channel output can be muted individually.

PT2312E Applications

* Car Audio
* Home Audio System
* Powered Speaker System APPLICATION CIRCUIT 22uF PT2312E 1 REF SCL 32 SDA 31 DGND 30 LFOUT 29 RFOUT 28 LROUT 27 RROUT 26 BOUT_R 25 BIN_R 24 BOUT_L 23 BIN_L 22 LOUT 21 LIN 20 LIN1 19 LIN2 18 LIN3 17 10uF 10uF 10uF 10uF 100n 100n 100n 100n 2.2

📥 Download Datasheet

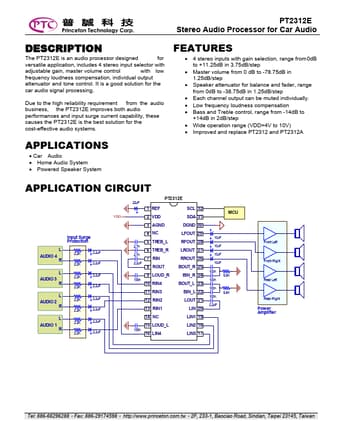

Preview of PT2312E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT2312E
Manufacturer
Princeton Technology
File Size
253.23 KB
Datasheet
PT2312E-PrincetonTechnology.pdf
Description
Stereo Audio Processor
