P14C13 - Over voltage protector

Datasheet Summary

Description

The P14C13 is an Over-Voltage-Protection (OVP) load switch with fixed 6.0V OVLO threshold voltage.

The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold.

Prisemi

📥 Download Datasheet

Datasheet Details

Part number	P14C13
Manufacturer	Prisemi
File Size	286.51 KB
Description	Over voltage protector
Datasheet	P14C13 Datasheet
Additional preview pages of the P14C13 datasheet.

📁 Similar Datasheet

P140 - Rotary Potentiometer (TT)
P1402AA - SIDACtor Protection Thyristors (Littelfuse)
P1402AB - SIDACtor Protection Thyristors (Littelfuse)
P1402AC - SIDACtor Protection Thyristors (Littelfuse)
P1402ACMC - SIDACtor Protection Thyristors (Littelfuse)
P1402CAL - Compak TwinCHIP SIDACtor Device (Littelfuse)
P1402CBL - Compak TwinCHIP SIDACtor Device (Littelfuse)
P1402CDG - N-Channel MOSFET (UNIKC)
P1403CV - N-Channel MOSFET (UNIKC)
P1403EK - MOSFET (UNIKC)

Other Datasheets by Prisemi

P14C1N - Over voltage protector
P14C2N - Over voltage protector
P14C5N - Over voltage protector
P1405 - Over voltage protector
P1465 - Over voltage protector

Full PDF Text Transcription

Click to expand full text

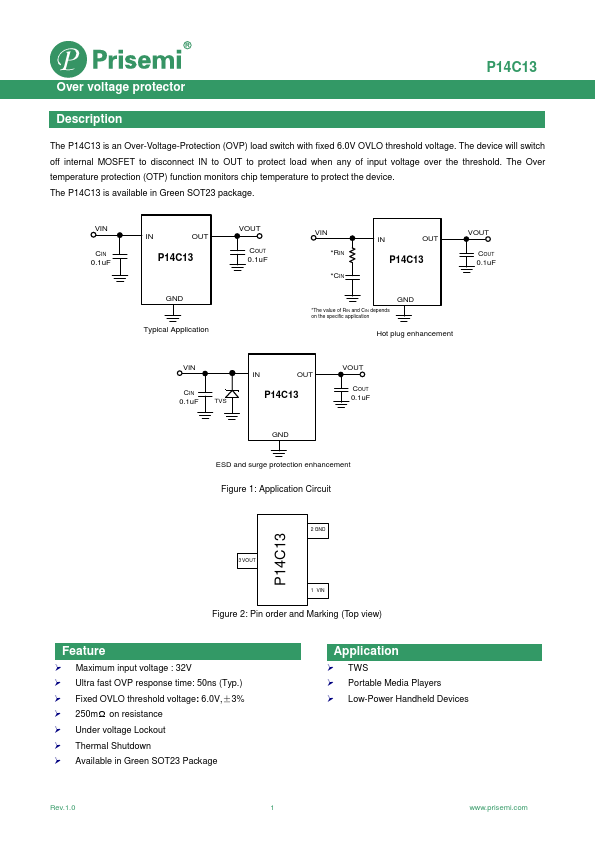

Over voltage protector P14C13 Description The P14C13 is an Over-Voltage-Protection (OVP) load switch with fixed 6.0V OVLO threshold voltage. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The P14C13 is available in Green SOT23 package. VIN CIN 0.1uF IN OUT P14C13 VOUT COUT 0.1uF GND Typical Application VIN *RIN *CIN IN OUT P14C13 VOUT COUT 0.1uF *The value of RIN and CIN depends on the specific application GND Hot plug enhancement VIN CIN 0.1uF TVS IN OUT P14C13 VOUT COUT 0.

Published: Jul 17, 2025 |
