P8803, Quad Low-Side Driver

P8803 Quad Low-Side Driver IC .
The P8803 provides a 4-channel low side driver with overcurrent protection.

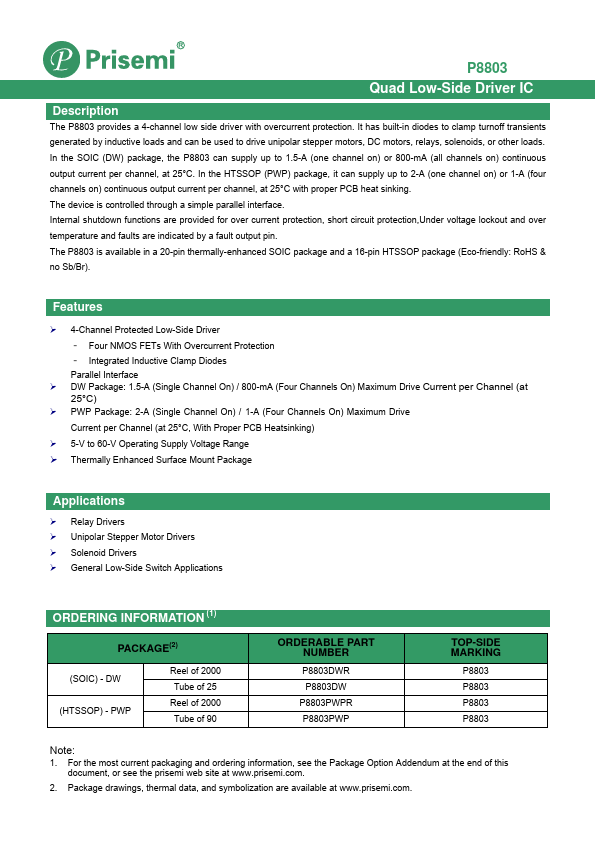

datasheet Preview Page 1 from Datasheet4u.com

P8803-Prisemi.pdf

P8803 Datasheet Preview — Preview of P8803 PDF

Datasheet Details

Part number:

P8803

Manufacturer:

Prisemi

File Size:

226.93 KB

Description:

Quad Low-Side Driver

Features

* ¾ 4-Channel Protected Low-Side Driver
* Four NMOS FETs With Overcurrent Protection
* Integrated Inductive Clamp Diodes Parallel Interface ¾ DW Package: 1.5-A (Single Channel On) / 800-mA (Four Channels On) Maximum Drive Current per Channel (at 25°C) ¾ PWP Package: 2-A (Single Channel

Applications

* ¾ Relay Drivers ¾ Unipolar Stepper Motor Drivers ¾ Solenoid Drivers ¾ General Low-Side Switch Applications ORDERING INFORMATION (1) PACKAGE(2) (SOIC) - DW (HTSSOP) - PWP Reel of 2000 Tube of 25 Reel of 2000 Tube of 90 ORDERABLE PART NUMBER P8803DWR P8803DW P8803PWPR P8803PWP TOP-SIDE MARKING P
