PDS320W

Switching Diode

PDS320W General Description

Surface Mount Schottky Barrier Rectifier Rectifiers Reverse Voltage 20 to 200 V Forward Current 3.0 A 12 SOD123-FL Maximum Ratings and Electrical characteristics per line@25℃( unless otherwise specified) Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate .

PDS320W Datasheet (505.19 KB)

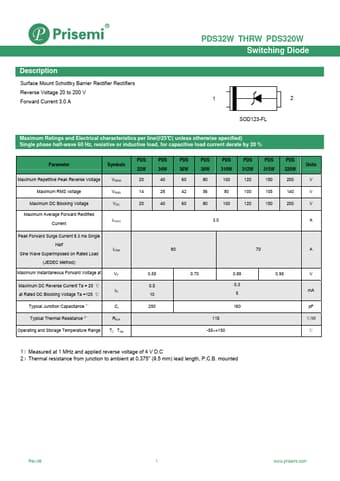

Preview of PDS320W PDF

Datasheet Details

Part number:

PDS320W

Manufacturer:

Prisemi

File Size:

505.19 KB

Description:

Switching diode.
