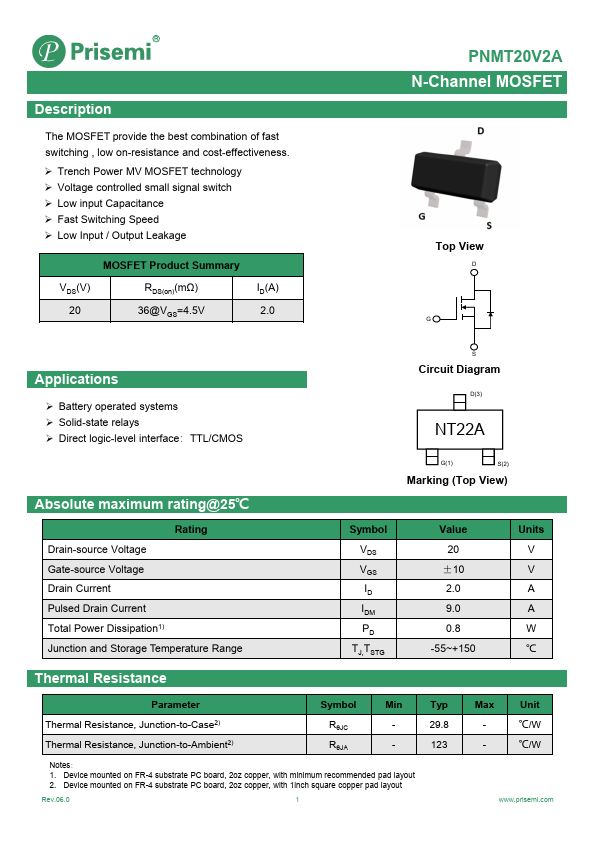

PNMT20V2A Datasheet - Prisemi

PNMT20V2A, N-Channel MOSFET

.
The MOSFET provide the best combination of fast switching , low on-resistance and cost-effectiveness. Trench Power MV MOSFET technology. Vo.

datasheet Preview Page 1 from Datasheet4u.com

PNMT20V2A-Prisemi.pdf

PNMT20V2A Datasheet Preview — Preview of PNMT20V2A PDF

Datasheet Details

Part number:

PNMT20V2A

Manufacturer:

Prisemi

File Size:

405.08 KB

Description:

N-Channel MOSFET

Applications

* Battery operated systems
* Solid-state relays
* Direct logic-level interface：TTL/CMOS S Circuit Diagram D(3) NT22A Absolute maximum rating@25℃ Rating Drain-source Voltage Gate-source Voltage Drain Current Pulsed Drain Current Total Power Dissipation1) Junction and Storage Temperature
