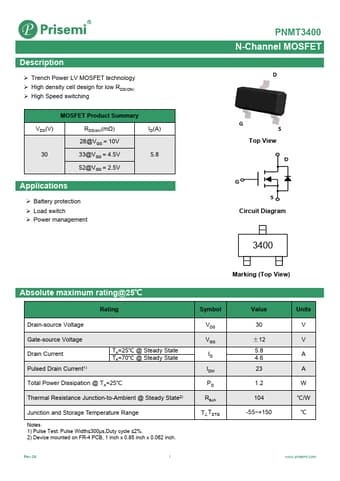

PNMT3400 Datasheet, Mosfet, Prisemi

PDF File Details

Part number:

PNMT3400

Manufacturer:

Prisemi

File Size:

1.15MB

Download:

📄 Datasheet

Description:

N-channel mosfet.

Trench Power LV MOSFET technology

High density cell design for low RDS(ON)

High Speed switching MOSFET

PNMT3400 Application

• Applications
• Battery protection
• Load switch
• Power management PNMT3400 N-Channel MOSFET Top View Circuit Diagram 3400
