42BYGH243 Datasheet - Promoco

42BYGH243 - Hybrid Stepper Gearmotor

Hybrid Stepper Gearmotor 42BYGH Series Planetary Gearhead General Specifications Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C ~ +50°C Insulation Resistance 100 MΩ Min.

500 VDC Dielectric Strength 500 VAC 1s Customized solutions on request.

Electrical Specifications Model 42BYGH243 AG5.18 42BYGH243 AG26.8 Model Step Angle ° 1.8 1.8 Motor Length L1 (mm) 34 34 Rate Voltage V 2.6 2.6 Rate Current A 1.0 1.0 Phase Resistance Ω 2.6 2.6 Phase Inductanc

42BYGH243-Promoco.pdf

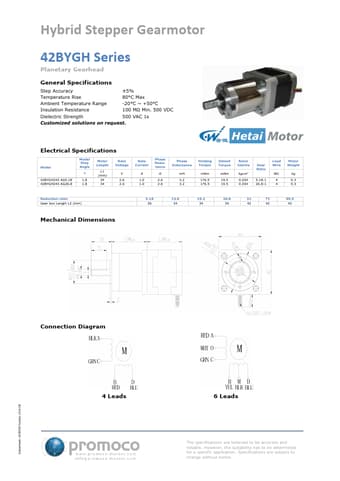

Preview of 42BYGH243 PDF

Datasheet Details

Part number:

42BYGH243

Manufacturer:

Promoco

File Size:

319.16 KB

Description:

Hybrid stepper gearmotor.
